Your Professional Side-mounted Motors manufacturer!





Since its establishment, Taizhou Zhongdong Technology Co., Ltd. has been committed to the research and development and production of tricycle export motors, forklift logistics motors, high-speed mid-mounted side motors, and garden motors.Our is one of China top professional center-mounted direct drive motor manufactures.



Why Choose Us

Our Factory

Our company has 20 technical research and development personnel, 100 employees, four assembly lines, an annual output of 800000 units, and a total area of 10000 square meters.

Our Certificates

We have more than 30 independent intellectual property rights, including domestic invention patents. Our products have passed IS9001 certification, CE certification, RoHS certification, and 3C certification, and are exported to domestic and foreign markets, receiving unanimous praise from the industry.

Production Management

With independent research and development as our mission, excellent quality as our guarantee, we strictly control the details and adhere to high standards of production management.






Advantages of side-mounted motors

01/

Space optimization:
By mounting the motor on the side, manufacturers can maximize the internal space available within a machine, allowing for more compact designs or additional components to be integrated.

02/

Easy access for maintenance:
With a side-mounted motor, maintenance tasks like inspection, lubrication, or repairs are often easier to perform as the motor is readily accessible from the side of the machine.

03/

Improved weight distribution:
Positioning the motor on the side can help balance the weight of the machine more evenly, enhancing stability and performance.

04/

Reduced noise levels:
By placing the motor away from the operator's position, side mounting can help minimize noise transmission to the user.

05/

Design flexibility:
Depending on the application, side-mounted motors can be positioned on either side of the machine to best suit the specific layout and functional requirements.

06/

Potential for lower center of gravity:
In some cases, side mounting can contribute to a lower center of gravity, which can be beneficial for stability in certain applications.



Parameter





Model

ZD-01

ZD022

ZD031

ZD037

ZD038

Rated voltage

72V-96W

48V-72V

48V-96V

48V-96V

48V-96V

Rated power

3KW-10KW

2000W

400W

2000W-5000W

4000W

Peak power

15KW

4000W

2000W

6000W

6000W

Rated speed

900rpm-1400rpm

600rpm

370rpm

860rpm

900rpm

Peak torque

300N.m

200N.m

160N. m

220N.m

180N.m

Maximum efficiency

≤90%

≤88%

≤86%

≤88%

≤90%

Protection level

lP65

lP65

IP65

IP67

IP65

Insulation level

B

B

B

B

B

Osition Sensor Type

HALL

HALL

HALL

HALL/GMR

HALL/GMR

Temperature sensor model

KTY84-150

KTY84-150

KTY84-150

KTY84-150

KTY84-150

Gear ratio

6:1/4.5：1

6:1

6:1 /8.5:1

6:1

6:1/4.5:1

Transmission form

/

Gear drive

Gear drive

Gear drivers

Gear drivers

Motor weight

26.4kg

10.4KG

8.2 KG

16.5KG

16.5kg

Cooling Method

Natural cooling

Natural cooling

Natural cooling

Natural cooling

Natural cooling

Application scenarios

High speed electric motorcycle

Electric motorcycle

Electric motorcycle

Electric motorcycle

High speed electric motorcycle



Application of Side-mounted Motors



power tools

In power tools, the side-mounted motor can provide higher torque and lower speed, which is suitable for drilling, cutting, polishing and other applications that require high torque.

Electric bicycles and electric motorcycles

In electric bicycles and electric motorcycles, the side-mounted motor can provide higher speed and lower torque, which is suitable for scenarios with faster driving speeds.

ZD-01 High-speed Motorcycle Side-mounted Motor



Types of Side-mounted Motors


Permanent magnet synchronous motor

Permanent magnet synchronous motors refer to synchronous motors with permanent magnets embedded on the rotor. Its characteristics are that the synchronous speed is proportional to the grid frequency, and it has the advantages of stable speed, high efficiency, and fast response speed. At the same time, due to the presence of permanent magnets, permanent magnet synchronous motors also have the advantages of large starting torque and high power density. Therefore, in high-speed, heavy-load and precision control application scenarios, permanent magnet synchronous motors perform well.

Asynchronous motors

Asynchronous motors refer to motors without permanent magnets on the rotor, and their speed is slightly lower than the synchronous speed. Asynchronous motors have the advantages of simple structure and low maintenance cost, and are widely used in low-speed, heavy-load, and high-starting torque scenarios. However, due to the inability to accurately determine the speed, asynchronous motors do not perform as well as permanent magnet synchronous motors in high-speed and precision control scenarios.



productcate-683-493



Packaging and Shipping

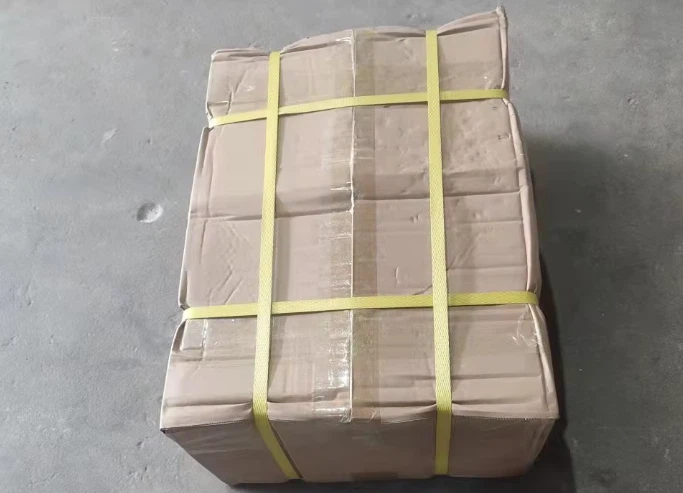

Generally, we pack our goods with small box ,then some small boxes in one carton which suitable for shipping containers.
DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available.





Our Certificates


productcate-1-1
productcate-1-1
productcate-1-1





FAQ



Q: Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q: How about the lead time?

A: If no stocks, it takes 7 to 15 working days to manufacture after receiving the advance payment. If in stock, 2-4 working days are
possible. But it depends on the exact products and quantity.

Q: Which payment can be acceptable ?

A: We could accept the payment by T/T, Paypal, Western Union,L/C, etc.

Q: How to tell if a motor is vertical or horizontal?

A: That is because horizontal, foot-mounted motors are bolted to a solid base. With vertical motors, only the lower end is attached to a mounting flange, while the upper end remains unsupported.

Q: What does CCW mean on a motor?

A: CCW on a motor stands for counterclockwise, which is the direction a motor rotates when viewed from the output shaft end.

Q: What is the difference between AC and DC motors?

A: The main difference between AC and DC motors is the type of electrical current they use:
AC motors
Use alternating current (AC), which periodically reverses direction. AC motors are often used in household appliances and industrial machinery because they can generate high power levels. They are also simpler in construction than DC motors.
DC motors
Use direct current (DC), which flows in one direction continuously. DC motors are often used in applications that require precise speed control, such as computer disk drives and electric vehicles.

Q: What type of motor is not normally reversible?

A: Among the given motor types: brushless DC motor, Universal motor, PM motor, and servo motor, the universal motor is not normally considered reversible. This is due to their mechanical design considerations such as brush and commutator system.

Q: What will happen if the back eMF of a DC motor vanishes suddenly?

A: In a DC motor, if the back emf vanishes suddenly (Eb = 0), then the motor circuit will try to retain back emf by drawing more current from the supply. As the back emf vanishes zero, the whole supply voltage appears across the armature and heavy current flows which may burn the armature winding.

Q: What motors can rotate in either direction?

A: Simply put, DC motors can turn in either direction (clockwise or counter-clockwise) and can be easily controlled by inverting the polarity of the applied voltage. Strictly speaking, the motors can actually create a force in either direction.

Q: Which has more torque, an AC or DC motor?

A: AC motors are generally considered to be more powerful than DC motors because they can generate higher torque by using a more powerful current. However, DC motors are typically more efficient and make better use of their input energy.

As one of the leading side-mounted motors manufacturers and suppliers in China, we warmly welcome you to buy cheap side-mounted motors made in China here from our factory. All customized products are with high quality and competitive price. For quotation and free sample, contact us now.

ZD031 Electric Motor Single Side Mounted Motor, ZD 01 High speed Motorcycle Side mounted Motor, ZD022 Electric Motor Single Side Mounted Motor
